As the global push toward clean energy accelerates, the demand for high-performance lithium-ion batteries continues to surge. At the heart of these batteries lies a critical component: the copper foil, which serves as the anode current collector. Among the different types of copper foil used, electrodeposited copper foil (ED copper foil) has become a preferred choice due to its superior mechanical strength, excellent conductivity, and fine surface characteristics.
This article explores the technical design and operational principles of electrodeposited copper foil equipment, while also highlighting the role of leading manufacturers like Timonic, a company at the forefront of new energy lithium battery material production equipment.
Understanding Electrodeposited Copper Foil
Electrodeposited copper foil is manufactured through an electrochemical process, where copper ions from an electrolyte solution are deposited onto a rotating drum cathode. This method allows precise control over thickness, texture, and crystal orientation, making it ideal for demanding applications such as lithium batteries and printed circuit boards (PCBs).
Core Components of Copper Foil Equipment
The design of electrodeposited copper foil equipment is highly sophisticated, encompassing a range of critical subsystems to ensure uniformity, scalability, and high-quality output. Key components include:
1. Electrolytic Cell
The heart of the system, where copper deposition takes place. It includes:

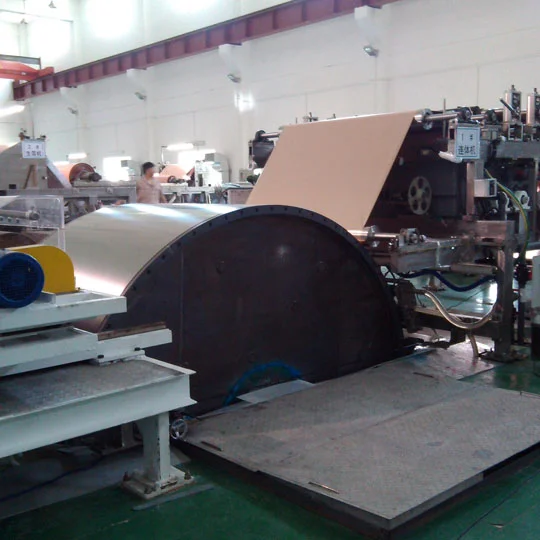

Rotating Drum Cathode: Typically made from titanium or stainless steel, this rotating drum attracts copper ions and allows continuous collection of the foil.
Anodes: Usually made of high-purity copper plates that dissolve into the electrolyte and supply copper ions.
Electrolyte Circulation System: Maintains temperature, copper ion concentration, and acidity for optimal deposition.
2. Power Supply System
A stable and adjustable DC power source is vital to control current density, which directly impacts the microstructure of the deposited foil. Advanced systems offer real-time feedback loops and digital controls for precision.
3. Foil Peeling and Washing Unit
Once copper foil is deposited onto the cathode drum, it is carefully peeled off and passed through a sequence of washing stages to remove residual electrolyte and impurities.
4. Surface Treatment Line
Surface treatment processes such as roughening, oxidation, and anti-corrosion coating are integrated to improve adhesion to electrode materials and long-term reliability.
5. Drying and Rolling Section
Final stages involve drying the treated copper foil and winding it into rolls, ensuring consistent tension and alignment for downstream processing.
Innovations in Copper Foil Machinery by Timonic
Timonic is a forward-thinking manufacturer dedicated to the R&D and production of cutting-edge lithium battery material equipment. The company has made significant strides in developing:
Copper Foil Fabrication Machines
Engineered for high-efficiency and precision, Timonic’s copper foil machines integrate intelligent control systems, advanced automation, and robust design for continuous, high-yield production. These machines enable:
Uniform thickness control within microns
Seamless integration with post-processing lines
Energy efficiency and reduced waste
Cathode Rollers for Lithium Battery Production
Another flagship product from Timonic, these rollers are essential for electrode coating and calendaring. Their durability, surface precision, and resistance to thermal and chemical wear are tailored to meet the high demands of modern battery production lines.
By focusing on technological innovation and quality manufacturing, Timonic supports the rapidly expanding electric vehicle and renewable energy sectors with reliable, future-ready solutions.
The Future of Electrodeposited Copper Foil Equipment
With ongoing developments in battery chemistry and miniaturization of electronic components, the requirements for copper foil will continue to evolve. This will push equipment manufacturers to deliver even finer tolerances, smarter automation, and environmentally sustainable processes.
Companies like Timonic are poised to lead this transformation, blending deep industry knowledge with engineering excellence to power the future of clean energy.
Conclusion
Electrodeposited copper foil equipment represents a cornerstone in the production of lithium-ion batteries, combining precision engineering with complex electrochemical processes. As the demand for efficient energy storage solutions grows, the role of specialized machinery — and the companies that build them — becomes increasingly vital.
Timonic’s dedication to innovation in copper foil production and cathode roller technology positions it as a key enabler of the energy transition, supporting the global shift toward sustainable, high-performance battery systems.
